SLM828模组

SLM828模组

SLM828模组

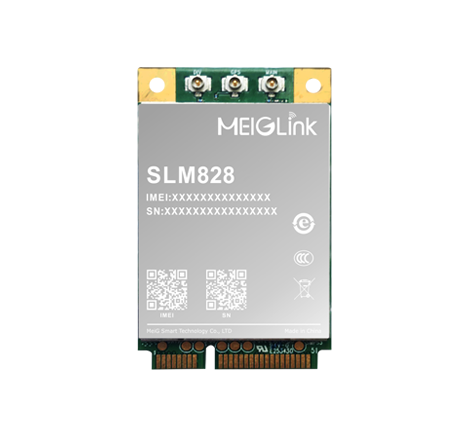

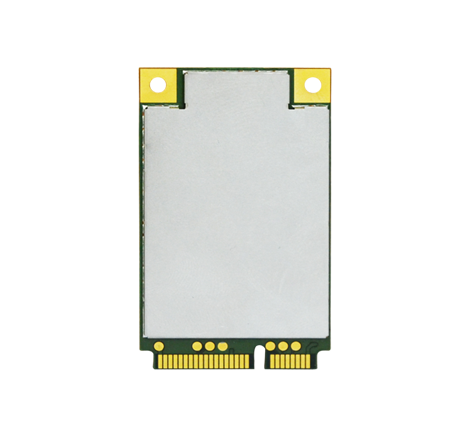

MeiG Smart SLM828 is LTE Advanced module optimized specially for M2M and IoT applications.


Adopting the 3GPP Rel.12 LTE technology and CA technology, it delivers maximum 300Mbps downlink and 50Mbit/s uplink peak data rates.


SLM828 LTE-A module contains two variants: SLM828-EU and SLM828-NA.


SLM828 module adopts MIMO technology, a cutting edge antenna technology capable of transmit multiple data streams from multiple transmitters to multiple receivers. SLM828 also combines Highsensitivity GNSS receiver for positioning.


A rich set of protocols (TCP/FTP/HTTP) and multiple OS compatibility extend the applicability of the module to a wide range of M2M applications.


Main advantages:

● SLM828 has a maximum downlink rate of 300Mbps and a maximum upstream rate of 50Mbps.

● Support DL 2CA,3CA

● Qualcomm® IZat™ Gen 8C engine,Support GPS/GLONASS/BeiDou

● Support Voice Codec (HR/FR/EFR/AMR/AMR-WB),Support SRLTE/CSFB/VOLTE (optional)

● USB2.0/USB3.0 High Speed Interface

● TCP/IP Embedded Protocol Stacks

Basic Attributes:
Product number:

SLM828 module

Package:

MiniPCIe package(52pin)

Size(mm):

51.0×30.0×4.5mm

Weight:

< 10g

Module Rate:
LTE-FDD (Cat.6):

Max 300Mbps(DL)/50Mbps(UL)

DC-HSPA+:

Max 42Mbps(DL)/5.76Mbps(UL)

WCDMA:

Max 384kbps(DL)/384kbps(UL)

Drivers & Tools:
Drivers:

Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10, Linux, Android

Tools:

One Click update tool, Gobinet Dial Tool

*FOTA upgrade
Module Interface:
USB 2.0/USB 3.0
UART×3
SIM card Interface(1.8 / 3.0V)
Antenna Interface:Main/Diversity/GNSS(Optional)
I2C×1
SDIO×1
Power On/Off,Reset
ADC×2
SPI×1
PCM×1
PCIe×1
GPIOs
Certification Information:
CE/FCC/PTCRB
Transmit power:
WCDMA/HSPA 23+1/-3dBm,LTE 23±2.7dBm
Protocols:
TCP*/UDP*/SSL*/HTTP(S)*/FTP*/PPP/PING/DTMF*/QMI
Environmental Temperature:
Working temperature:

-40℃ to 85℃

Storage temperature:

-45℃ to 90℃

Humidity:

5%~95%

Band Description of SLM828:
SLM828-EU
Frequency band:

LTE-FDD:B1/B3/B5/B7/B8/B20/B28/B32

LTE-TDD:B38/B40/B41

WCDMA:B1/B3/B5/B8

CA:

Intra ntiguous:CA_1C,CA_3C,CA_5B,CA_7B,CA_7C,CA_8B,CA_38C,CA_40C,CA_41C;

Intra Non-contiguous: CA_1A-1A,CA_3A-3A,CA_5A-5A,CA_7A-7A,CA_40A-40A,CA_41A-41A;

Inter band CA:

CA_1A-3A,CA_1A-5A,CA_1A-7A,CA_1A-8A,CA_1A-20A,CA_1A-28A,CA_1A-38A,CA_1A-40A,CA_1A-41A,

CA_3A-5A,CA_3A-7A,CA_3A-8A,CA_3A-20A,CA_3A-28A,CA_3A-38A,CA_3A-40A,CA_3A-41A,

CA_5A-7A,CA_5A-38A,CA_5A-40A,CA_5A-41A,

CA_7A-8A,CA_7A-20A,CA_7A-28A,CA_7A-32A,

CA_8A-32A,CA_8A-38A,CA_8A-40A,CA_8A-41A,CA_20A-32A,

CA_20A-38A,CA_20A-40A,

CA_28A-32A,CA_28A-38A,CA_28A-40A,CA_28A-41A

GNSS:

Support

SLM828-NA
Frequency band:

LTE-FDD:B2/B4/B5/B7/B12/B13/14/17/

B25/B26/B29/B30/B66/B71

WCDMA: B2/B4/B5

CA:

Intra ntiguous:CA_2C,CA_5B,CA_7B,CA_7C,CA_12B;

Intra Non-contiguous:CA_2A-2A,CA_4A-4A,CA_5A-5A,CA_7A-7A,CA_12A-12A,CA_25A-25A,CA_66A-66A;

Inter band CA:

CA_2A-4A,CA_2A-5A,CA_2A-7A,CA_2A-12A,CA_2A-13A,CA_2A-14A,CA_2A-29A,CA_2A-30A,CA_2A-66A,

CA_2A-71A,

CA_4A-5A,CA_4A-7A,CA_4A-12A,CA_4A-13A,CA_4A-29A,CA_4A-71A,

CA_5A-7A,CA_5A-25A,CA_5A-30A,CA_5A-66A,

CA_7A-12A,CA_7A-20A,CA_7A-28A,

CA_12A-25A,CA_12A-30A,CA_12A-66A,

CA_13A-66A,

CA_14A-30A,CA_14A-66A,

CA_25A-26A,

CA_29A-30A,CA_29A-66A,

CA_66A-71A

GNSS:

Option
