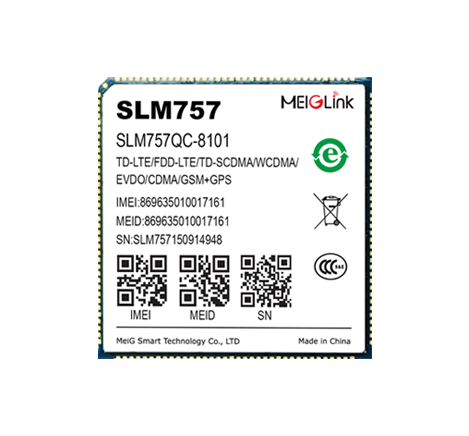

星空体育(中国)·官方网站SLM757系列核心板是一款板卡内存为8GB(兼容16GB)的全球不同制式多模LTE智能通信模组,此模组适用于TD-LTE/FDD-LTE/WCDMA/EVDO/TD-SCDMA/CDMA/GSM多种网络制式的宽带智能无线通信模组。
SLM757在提供高速宽带数据接入的同时,可提供语音、短信、通讯簿、Wi-Fi、BT 和 GPS功能,可广泛应用于视频记录仪、车载设备、智能平台、手持终端等产品。
SLM757采用Android7.1操作系统,可支持的接入速率:
● TD-LTE: 117/30Mbps
● FDD-LTE: 150Mbps/50Mbps
● WCDMA 可达 DC HSPA+: 42Mbps/5.76Mbps
● EVDO 可达 EVDO RevA: 3.1Mbps/1.8Mbps
● TD-SCDMA 可达 HSPA: 4.2Mbps/2.2Mbps
● CDMA1x: 153.6kbps/153.6kbps
● GSM 可达 EDGE: 236.8kbps/236.8kbps
基本属性: | |
产品型号: | 智能模组SLM757 |
操作系统: | Android 7.1 |
存储: | 8GB eMMC+1GB LPDDR3(default) |
温度范围: | -25°C ~ +75°C |
尺寸(mm): | 41.0x41.0x2.85mm |
Package: | LCC+LGA 238PIN |
Weight: | 10.5g |
Certification: | CCC/CE/FCC/PTCRB/AT&T/BQB |
Outstanding features: | |
WLAN: | IEEE 802.11a/b/g/n 2.4G&5G |
BT: | BT2.1+EDR/3.0/4.1 LE |
GNSS: | GPS/GLONASS/BeiDou |
Quick Charge 3.0 | |
USB OTG | |
Interface: | |
LCM: | HD 1280*800@60fps , 4-lane DSI |
Camera: | 16MP;4+2+1 lane CSI or 4+4 lane CSI |
Analog Audio: | Speaker, Receiver, Ear phone, Mic*3 |
USB: | USB 2.0*1,Support QC3.0, USB OTG |
I2C: | x5 |
(U)SIM: | x2(1.8V/2.95V) |
UART: | x3 (Max rate of 4Mbps) |
SD Card: | x1(Support SD 3.0, 4-bit SDIO) |
PWRKEY: | 1.8V , Internal pull-up |
SPI: | x1 |
ADC: | x2 |
GPIO: | x53 |
Motor drive: | x1 |
Flashlight: | x1 |
Backlight: | x2 |
Antenna: | LTE,DIV, GNSS,Wi-Fi & BT |
Audio & Video: | |
Supports low-power MP3 & AAC Dolby Digital enhancement technology and DTS-HD surround sound | |
Video codec: | 1080P@30fps Decode and Encode via H.264 |
Band(MHz): | |
China | |
SLM757QC | |
LTE-FDD: | B38/39/40/41 |
LTE-TDD: | B1/3/5/8 |
TDSCDMA: | B34/39 |
WCDMA: | B1/5/8 |
CDMA 1X/EVDO: | BC0 |
GSM: | B5/3/8/2 |
Europe | |
SLM757QE | |
LTE-FDD: | B38/40/41 |
LTE-TDD: | B1/3/5/7/8/20 |
WCDMA: | B1/B5/B8 |
GSM: | B5/3/8 |
America | |
SLM757QA | |
LTE-FDD: | B2/4/5/12/13/17/28 |
WCDMA: | B2/4/5 |
Remarks:*In research and development... |
